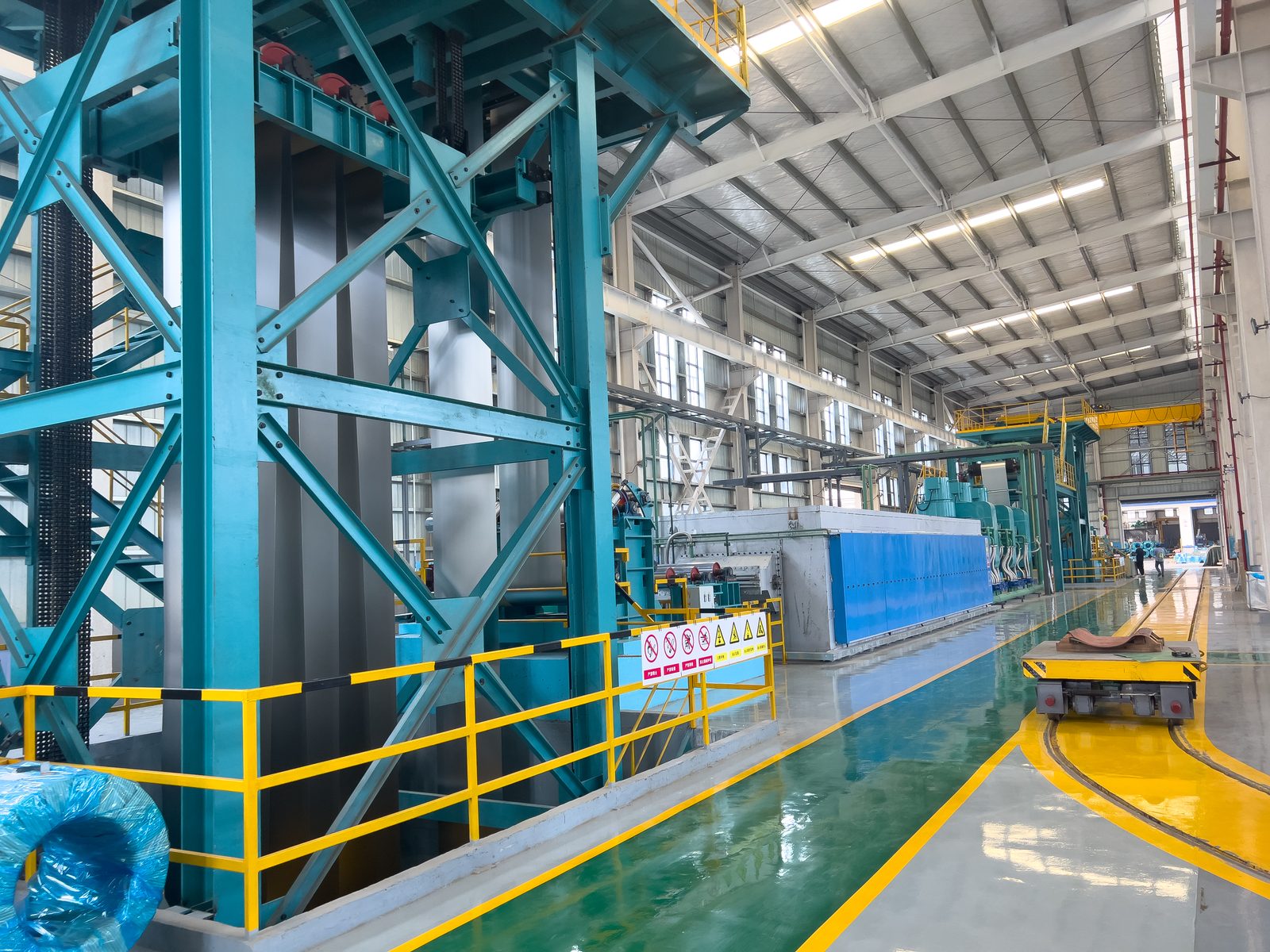

High-Speed Vertical Looper Bright Annealing Furnace
Vertical loop furnace for compact high-speed lines with 12-20 looper groups, 40-120 m/min line speed and TV 10-30 reference range.
450-1780 mm 0.03-8.0 mm
Read details
Controlled-atmosphere strip furnace systems
Bright annealing furnaces for BA/2BA strip.

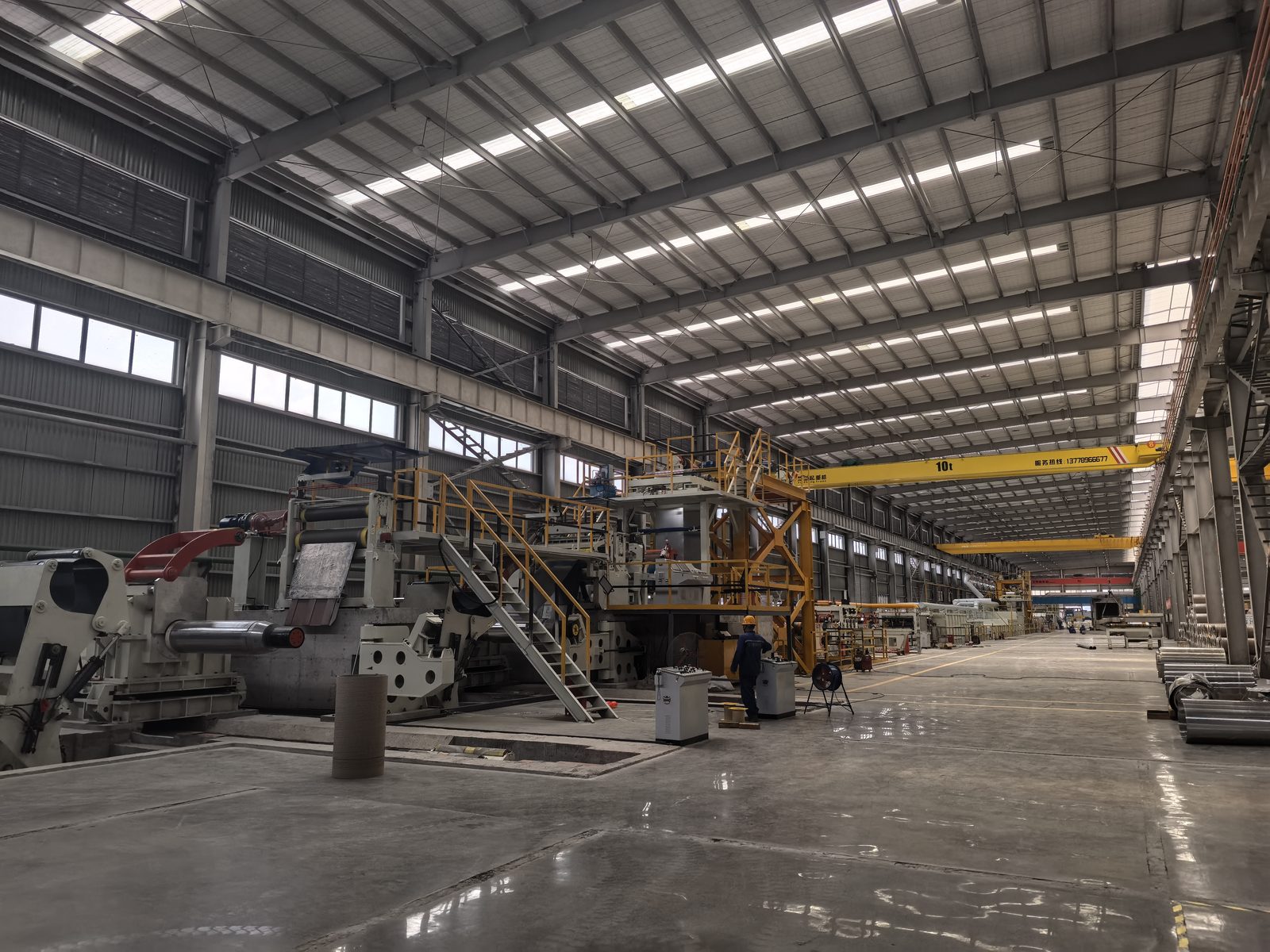

Continuous controlled-atmosphere furnace lines for stainless steel, copper, brass, aluminum and titanium strip.
450-1780 Strip width, mm
0.03-8.0 Strip thickness, mm
15-120 Line speed, m/min
TV 7-30 TV process value
Product categories
Choose the furnace structure from process demand.
High-speed vertical and horizontal loop furnaces support faster continuous bright annealing lines. Gas-fired and electric heating furnaces cover steady standard-speed BA/2BA strip production.

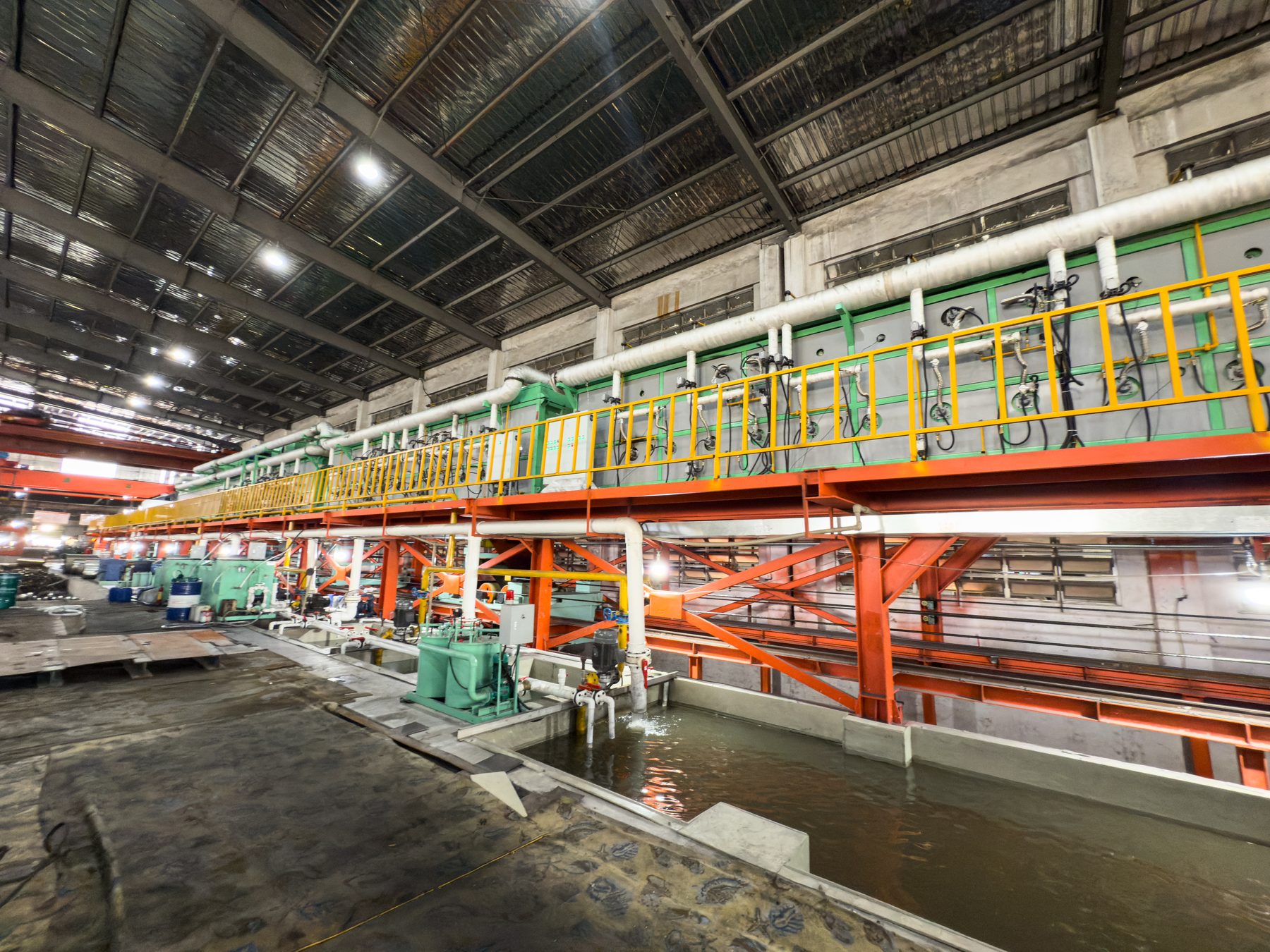

High-Speed Horizontal Looper Bright Annealing Furnace
Horizontal loop furnace for stable high-speed running with 4-12 layers, controlled strip travel and 40-120 m/min process speed.
450-1780 mm 0.03-8.0 mm
Read details

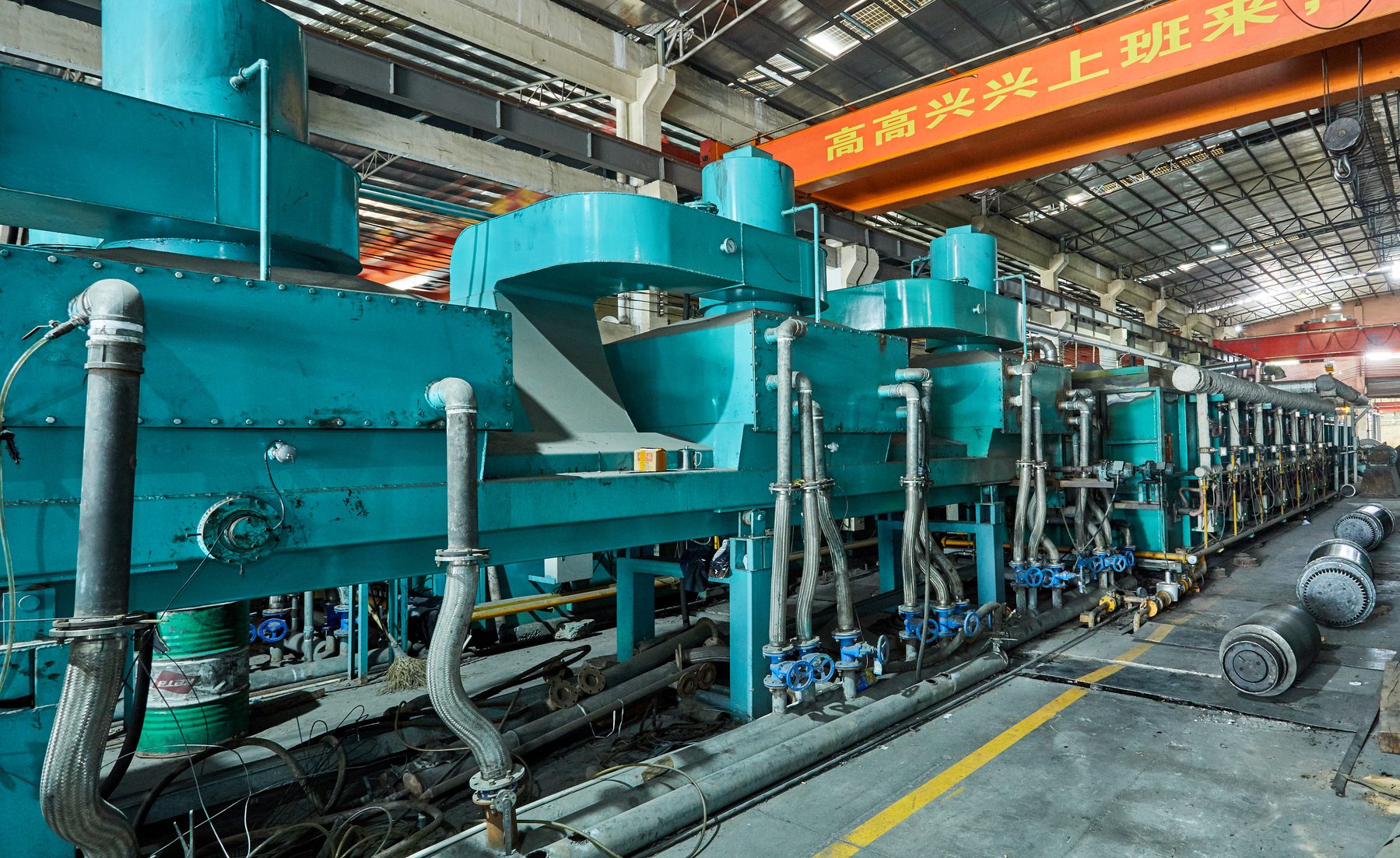

Gas-Fired Bright Annealing Furnace
Gas-fired furnace for natural gas or LPG projects, with 15-45 m/min line speed, TV 7-12 and fuel-consumption control.
Natural gas/LPG 450-1780 mm
Read details

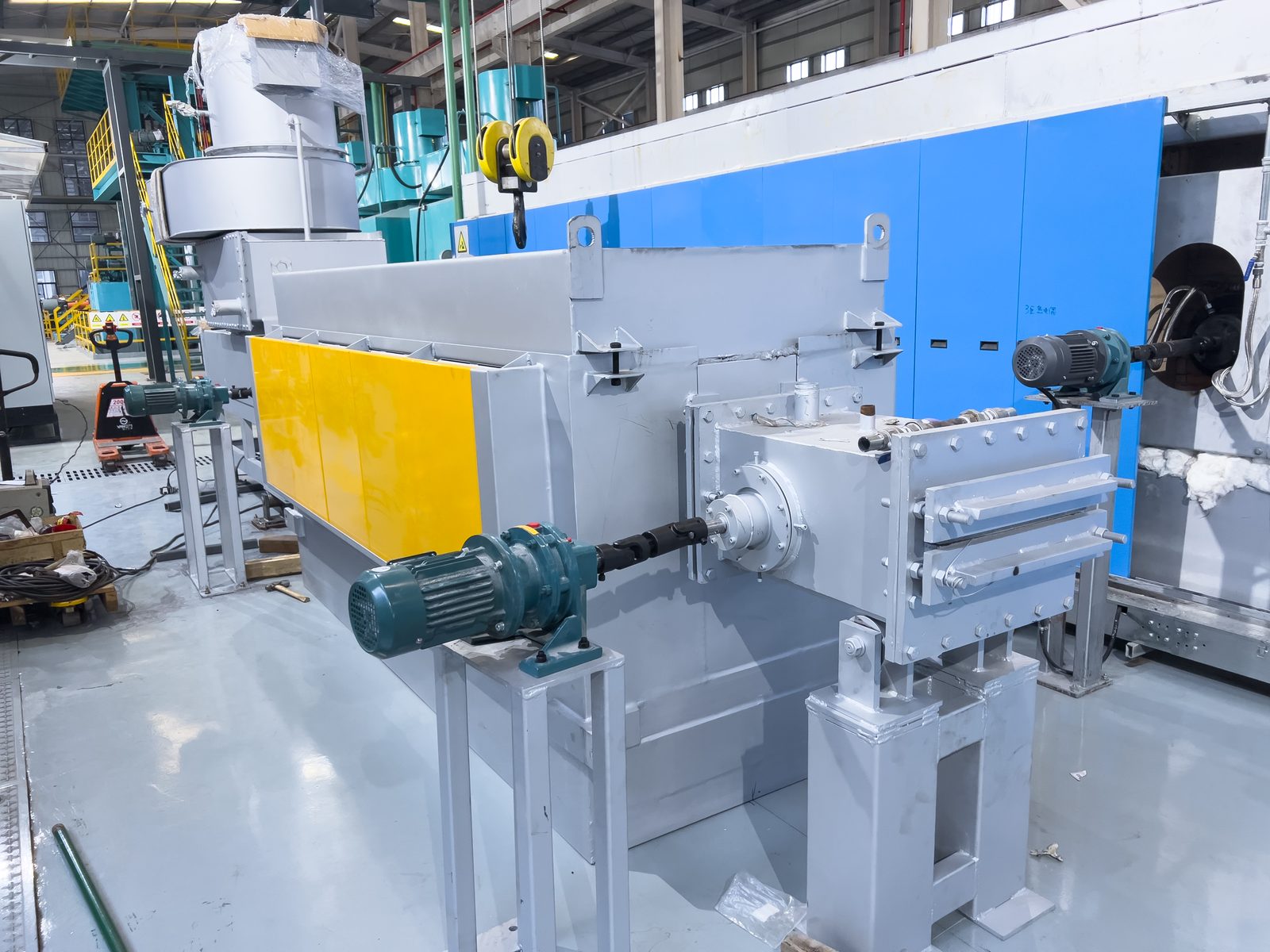

Electric Heating Bright Annealing Furnace
Electrically heated furnace for plants that prefer electric utilities, rated power data and steady temperature control.
450-1780 mm 360 kW
Read details Core data
Numbers buyers ask for first.
Before quotation, AKS checks whether the strip range, furnace speed, TV process value, heating method and controlled atmosphere match the plant target. These figures are not keyword filler; they are the first engineering filters for line layout, utility load, cooling design and automation scope.
| Width options | 450-1780 mm |
|---|---|
| Thickness range | 0.03-8.0 mm |
| Standard furnace speed | 15-45 m/min; TV 7-12 |
| High-speed furnace speed | 40-120 m/min; TV 10-30 |
| Controlled atmosphere | N₂, H₂, or dissociated ammonia |
- Energy saving: 15% compared with comparable equipment.
- Electrically heated furnace rated power: 360 kW.
- Annual inspection cycle and 1% equipment failure rate.
Control data
Keep the strip stable when speed changes.

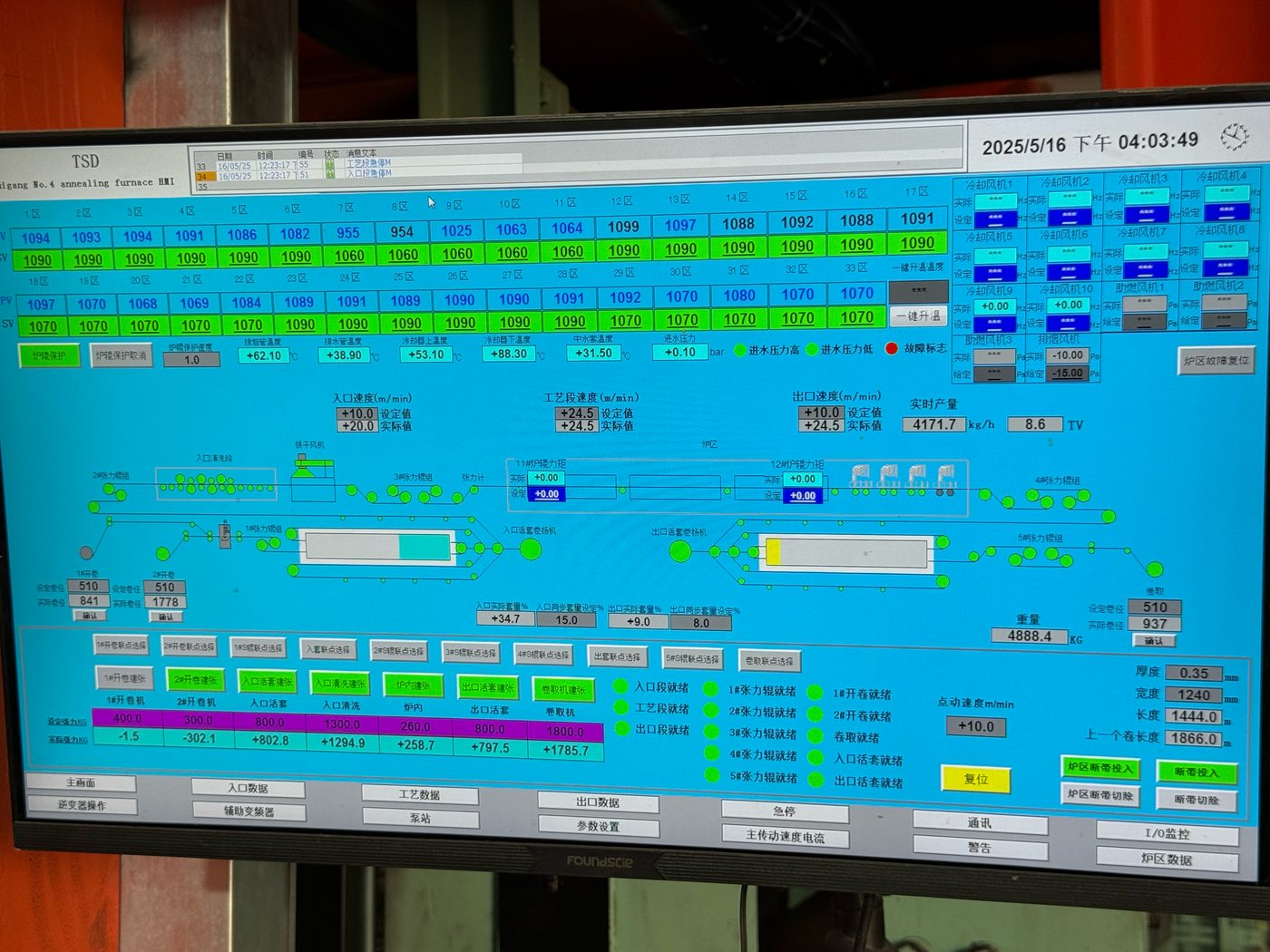

AKS furnace controls combine Siemens PLC, touch-screen HMI, automatic records, process fault alarms and real-time energy monitoring. The goal is to keep temperature, atmosphere and strip travel visible to operators instead of hiding quality risk inside the line.
- Temperature control accuracy: ±5°C.
- AKS atmosphere control target: <10 ppm.
- Explosion protection, overtemperature alarm and power-failure protection.
Applications

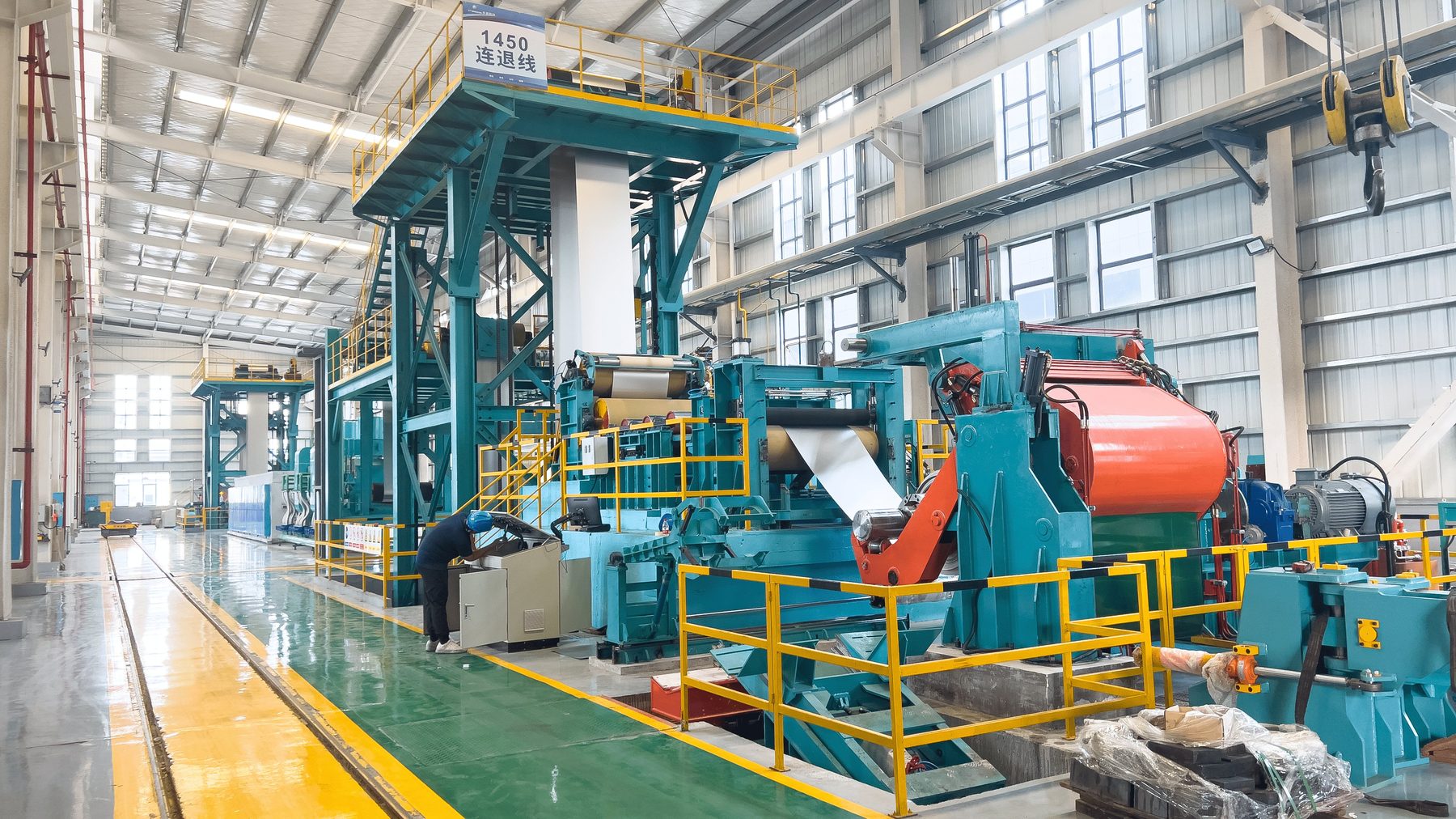

Built for strip mills where brightness, flatness and yield matter.
Applications cover stainless steel BA/2BA lines and selected non-ferrous strip projects where surface oxidation, cooling curve and tension control affect finished value.
Stainless steel strip
200, 300 and 400 series stainless steel strip for BA/2BA finish requirements, including surface brightness and flatness targets.
Aluminum and titanium strip
Customized heating, cooling and atmosphere routes for non-ferrous strip projects where oxidation and thermal deformation need close control.
Copper and brass strip
Continuous line design for bright surface output, repeatable cooling and production stability across coil batches.
Technical notes
Process notes for real furnace decisions.
Process Control
Atmosphere and BA surface control
Oxygen, dew point, temperature uniformity and finished strip brightness notes.
Read notes Energy
Gas consumption and heat recovery
Fuel type, combustion efficiency, insulation and recovery points to check early.
Read notes Cooling
Cooling curve and flatness control
Cooling speed, airflow, water route and tension control notes for stable strip.
Read notes
AKS data

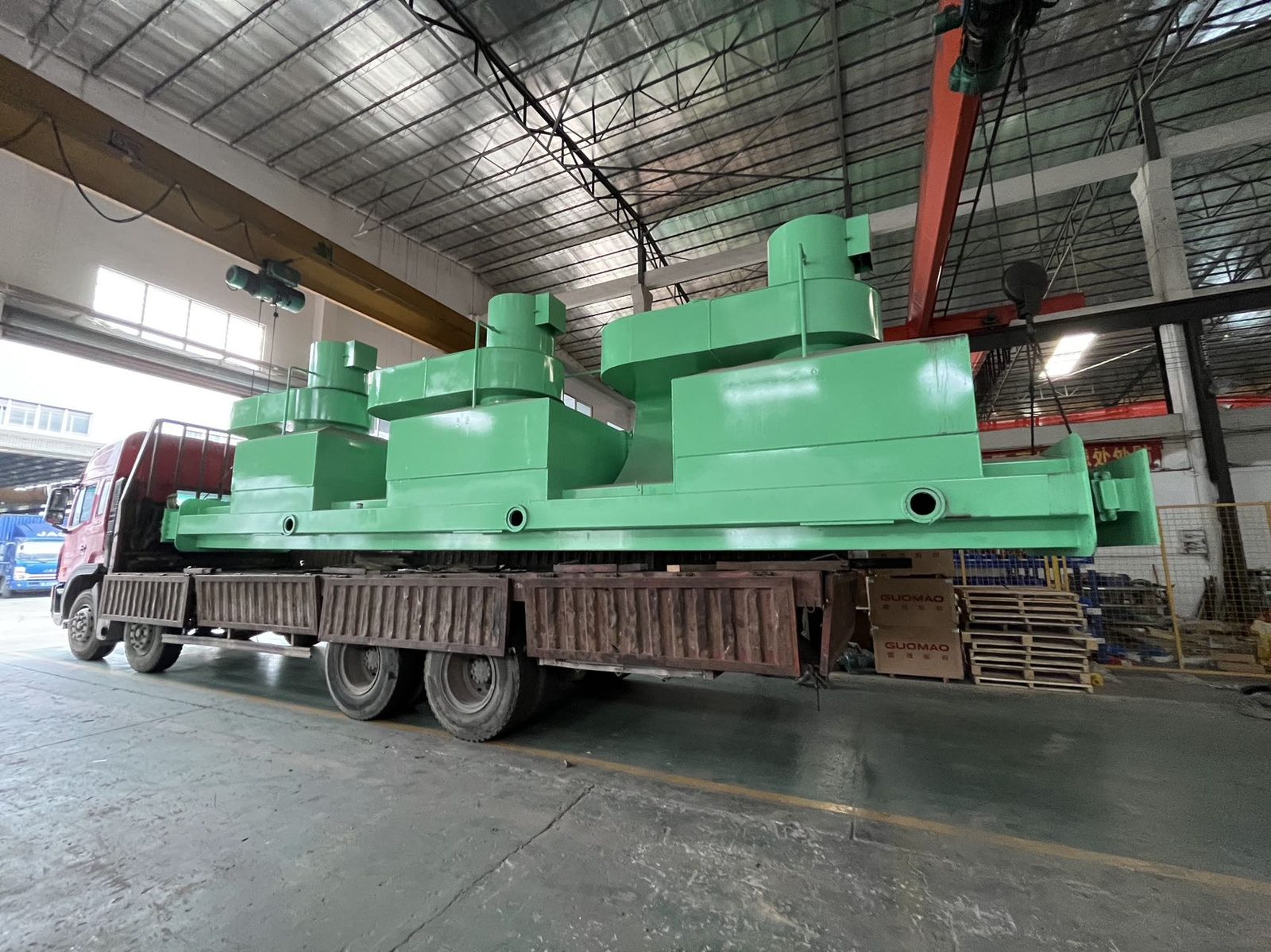

From Foshan engineering to export furnace projects.
Foshan AKS Intelligent Technology Co., Ltd. was founded in 2021 as an R&D, manufacturing, sales and service company focused on high-speed continuous bright annealing furnace equipment. The team has served more than 25 customer companies, holds 20+ patents and technical assets, and supports projects across Southeast Asia, the Middle East, Europe and North America.
